INDUSTRIAL PC | Rugged Industrial PC for Edge Computing and AI
Thunderbook ECCO industrial PCs are designed to integrate rugged computing into machinery, production lines, industrial vehicles and Edge environments. The ECCO family supports Intel Atom, Celeron, Core i5/i7/i9 and Xeon processors, with configurations of up to 64 GB RAM, Windows 11 Pro or Linux kernel, and operating temperature ranges reaching -40°C to +70°C, depending on the model. Thanks to their compact design, modular expansion and industrial connectivity, ECCO systems can centralise machine control, machine vision, SCADA automation and AI processing directly at the Edge, without relying on office computers or protected technical rooms.
C A R A C T E R Í S T I C A S P R I N C I P A L E S
Beneficios de los PC Industrial ECCO
PC Industrial que opera con Edge Computing e IA facilitando operaciones y tareas con IA en tiempo real. Automatiza procesos y Mejora Rendimiento.
K E Y F E A T U R E S
Benefits of Thunderbook Industrial PCs
Industrial PC that runs with Edge Computing and AI, making operations and tasks easier with real-time AI. Automates processes and boosts performance.
Modular Expansion

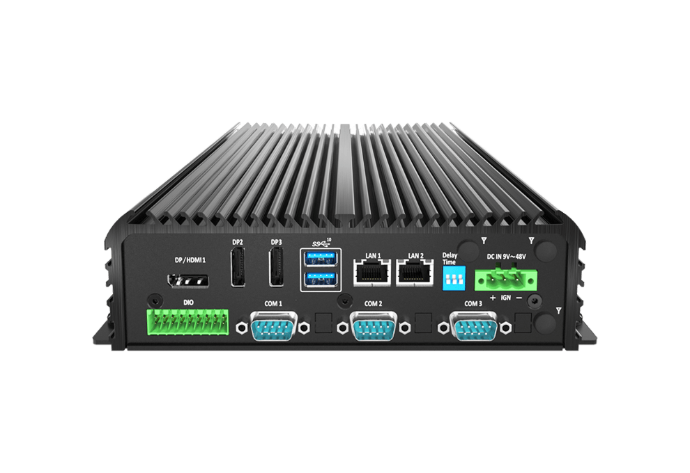

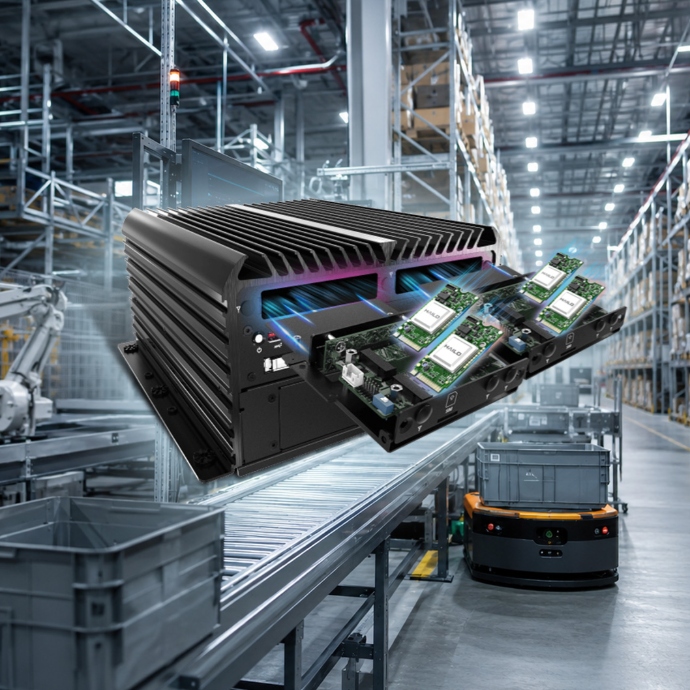

ECCO industrial PCs can expand their connectivity and functionality through Universal I/O slots and Ethernet, PoE, USB, HDMI, DisplayPort and RS-232/422/485 modules. Advanced configurations support up to 10 Ethernet ports, as well as M.2 options for communications, storage or AI acceleration.
High-Performance CPUs
The ECCO range supports Intel Atom, Celeron, Core i5/i7/i9 and Xeon processors, with configurations of up to 64 GB RAM. This scalability allows processing performance to be adapted to industrial control, automation, Edge Computing and machine vision applications.
Industrial Edge PC
ECCO processes data directly on the factory floor or inside industrial machinery, reducing dependence on external servers. With Windows 10/11, Linux kernel, a programmable WatchDog and power input options of up to 9-48 VDC, it provides a computing platform designed for industrial Edge environments.

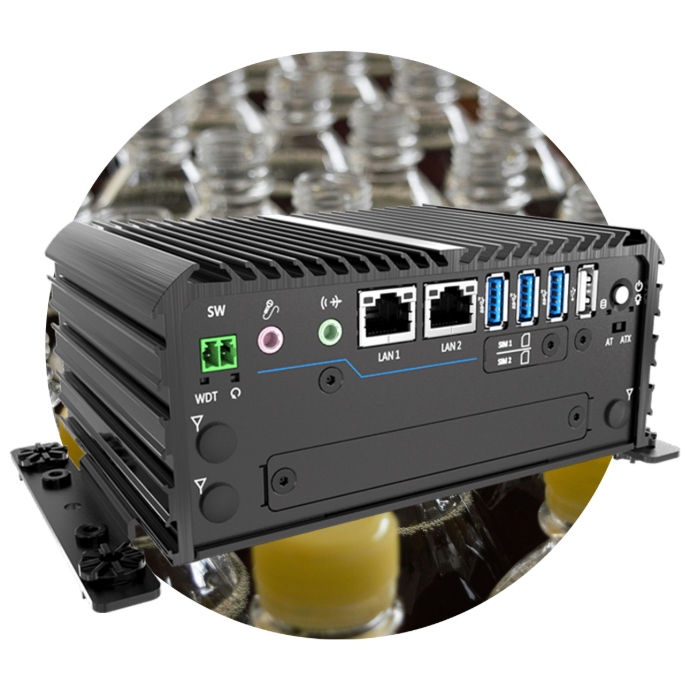

AI Processing Power
ECCO configurations can integrate an NVIDIA RTX 2060 GPU, Hailo-8 VPU and M.2 modules for AI or NVMe storage. This makes the platform suitable for visual inspection, local AI inference and real-time image analysis.
Our Industrial Edge Computers

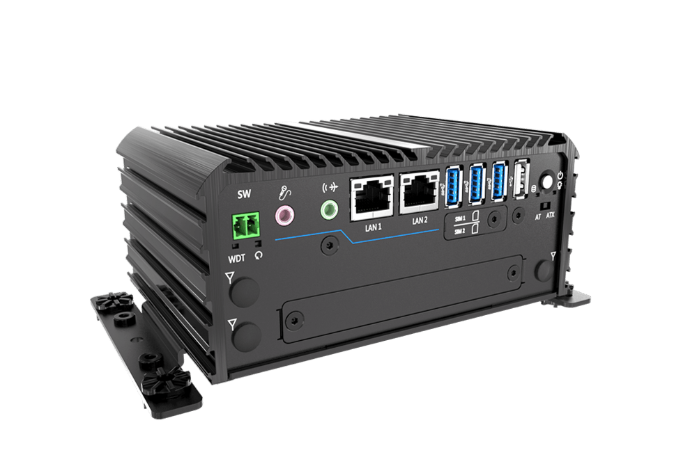

ECCO
- Especial para Vision Edge IA
- Unidad de procesamiento de visión VPU (Hailo 8)
- CPU Intel Atom x7433RE / x7835RE Quad Core
- Puertos y Memoria RAM Ampliables
- CPU Intel Celeron N5100 o Core i5
- 8 GB RAM, 128GB SSD (ampliables)
- Puertos Personalizables
- Wi-Fi y Bluetooth por defecto
- CPU Intel Intel 13/14 Gen, i5-13500TE, i7-13700TE
- 3x VPU (Hailo 8)
-
1x Slots de Expansión Universal
-
1x Full-size Mini PCIe y 2x SIM slots
- Special for Edge AI Vision
- Vision processing unit VPU (Hailo 8)
- Intel Atom x7433RE / x7835RE Quad Core CPU
- Expandable Ports and RAM
- Intel Celeron N5100 or Core i5 CPU
- 8 GB RAM, 128GB SSD (expandable)
- Cstomizable Ports
- Wi-Fi and Bluetooth by default
- ntel CPU Intel 13/14 Gen, i5-13500TE, i7-13700TE
- 3x VPU (Hailo 8)
-
1x Universal Expansion Slot
-
1x Full-size Mini PCIe and 2x SIM slots

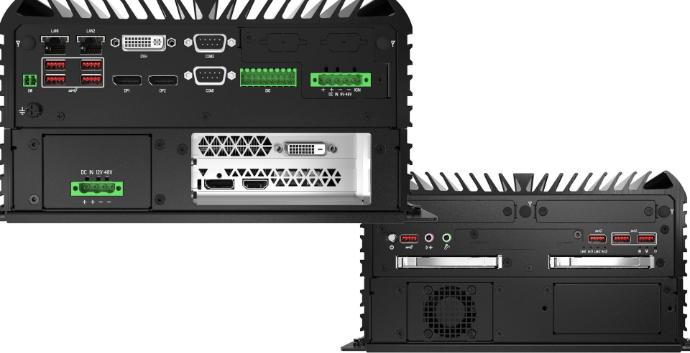

- CPU Intel Intel 13/14 Gen, i5-13500TE, i7-13700TE
-
GPU NVIDIA RTX 2000 Pro/4x VPU (Hailo 8)
- 2x Intel GbE Wake-on-LAN y PXE
-
2x Slots de Expansión Universal

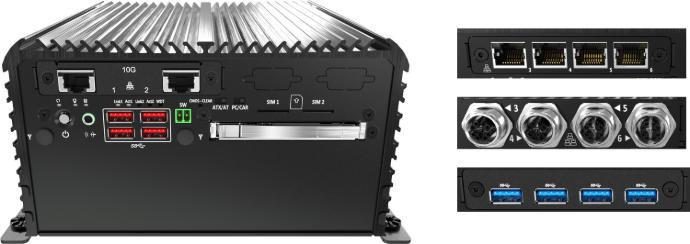

- The Ecco Boost expansion system allows you to expand most industrial PCs with multiple ports and connectivity options.
- Dependiendo de la serie ECCO el pc industrial podrá ser expandido en 4 u 8 slots.
- 2/4 x Discos Duros 2,5" intercambiables en caliente
-
8x Discos Duros SSD NVMe 7mm
-
2x Slots expansión PCI / PCIe
- Hardware and Software RAID
- Intel CPU 13th/14th Intel Gen, i5-13500TE, i7-13700TE
-
NVIDIA GPU RTX 2000 Pro/4x VPU (Hailo 8)
- 2x Intel GbE Wake-on-LAN and PXE
-
2x Universal Expansion Slots

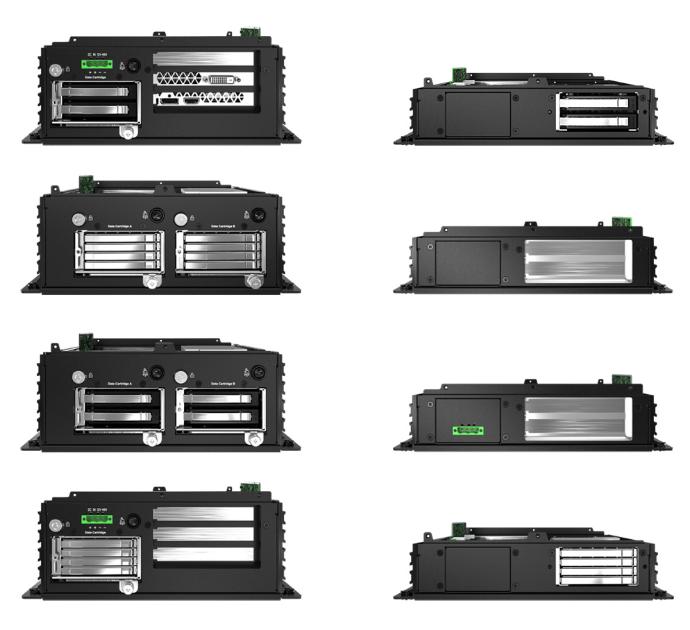

- The Ecco Boost expansion system allows most industrial PCs to be expanded with multiple ports and connectivity options.
- Depending on the ECCO series, the industrial PC can be expanded to 4 or 8 slots.
- 2/4 x 2.5" hot-swappable Hard Drives
-
8x 7mm NVMe SSDs
-
2x PCI / PCIe expansion slots
- Hardware and Software RAID
Why Choose an ECCO Industrial PC?
Choosing an ECCO industrial PC means deploying rugged, configurable embedded computing in environments where a conventional computer cannot operate reliably. With high-strength aluminium and metal enclosures, vibration resistance of up to 5 Grms with SSD storage and shock resistance of 50G/11 ms in selected configurations, ECCO is designed to maintain operational control across factories, field environments and industrial machinery.
At Thunderbook, we configure each ECCO system according to your CPU, storage, connectivity, GPU, VPU, mounting and operating system requirements. This ensures genuine compatibility with your industrial infrastructure and the specific demands of your application.
Más que un PC Industrial
Listo para SCADA
Compatibles con Windows 10/11 y Linux Kernel, los ECCO integran doble Ethernet, RS-232/422/485 y WatchDog programable. Su montaje en pared, VESA o carril DIN facilita la integración en sistemas SCADA y redes industriales.
.
Tarjeta Gráfica Dedicada GPU
Las versiones avanzadas pueden incorporar GPU NVIDIA RTX 2060 con alimentación de amplio voltaje 12–48V. Indicadas para visión artificial, procesamiento gráfico industrial y aplicaciones Edge de alto rendimiento.
Tarjeta Gráfica de Visión VPU

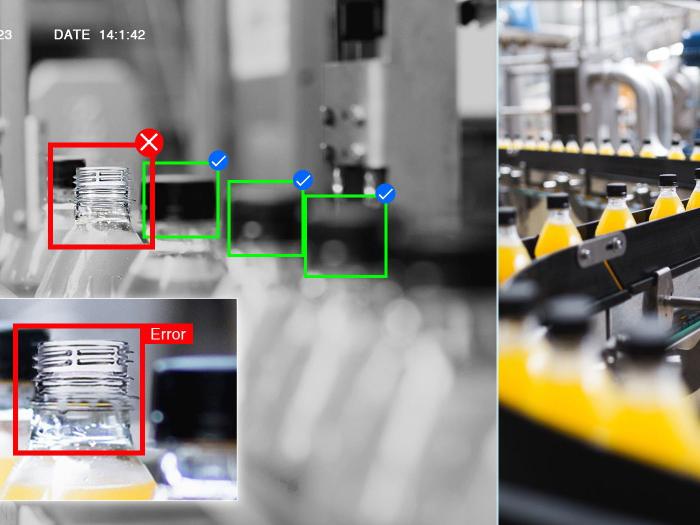

ECCO permite integrar VPU Hailo-8 en configuraciones específicas para acelerar visión artificial e inferencia IA. Ideal para control de calidad, detección de objetos y análisis de imagen en tiempo real.
Rugerizado
La familia ECCO ofrece rangos operativos de hasta -40°C a +70°C, humedad del 10% al 95% y chasis de aluminio y metal de alta resistencia. Varias configuraciones incluyen certificaciones CE, FCC Clase A y UL 62368 Ed. 3.
More than a Industrial PC
Ready for SCADA
Compatible with Windows 10/11 and Linux Kernel, the ECCO units feature dual Ethernet, RS-232/422/485, and a programmable WatchDog. Their wall, VESA, or DIN rail mounting makes integration into SCADA systems and industrial networks easy.
Dedicated Graphics Card GPU
The advanced versions can include an NVIDIA RTX 2060 GPU with a wide voltage power supply of 12–48V. Suitable for computer vision, industrial graphic processing, and high-performance Edge applications.
Vision VPU Graphics Card
ECCO allows integrating the Hailo-8 VPU in specific setups to speed up computer vision and AI inference. Ideal for quality control, object detection, and real-time image analysis.
Rugged
The ECCO family offers operating ranges from -40°C to +70°C, humidity from 10% to 95%, and high-strength aluminum and metal chassis. Various configurations include CE, FCC Class A, and UL 62368 Ed. 3 certifications.
P C I N D U S T R I A L
Preparados para Procesos
en Campo Integrando IA
I N D U S T R I A L P C
Ready to Automatize the Industry with AI
